I bought this vise pretty much 1.5 years ago together with the other Gressel bench vise I already restored and made a video. I also payed $20 for this one. Since then it was laying aroung in my basement. I always knew that I'll restore this one as well, just because it's a Gressel and it will totally worth to safe it from the trash.

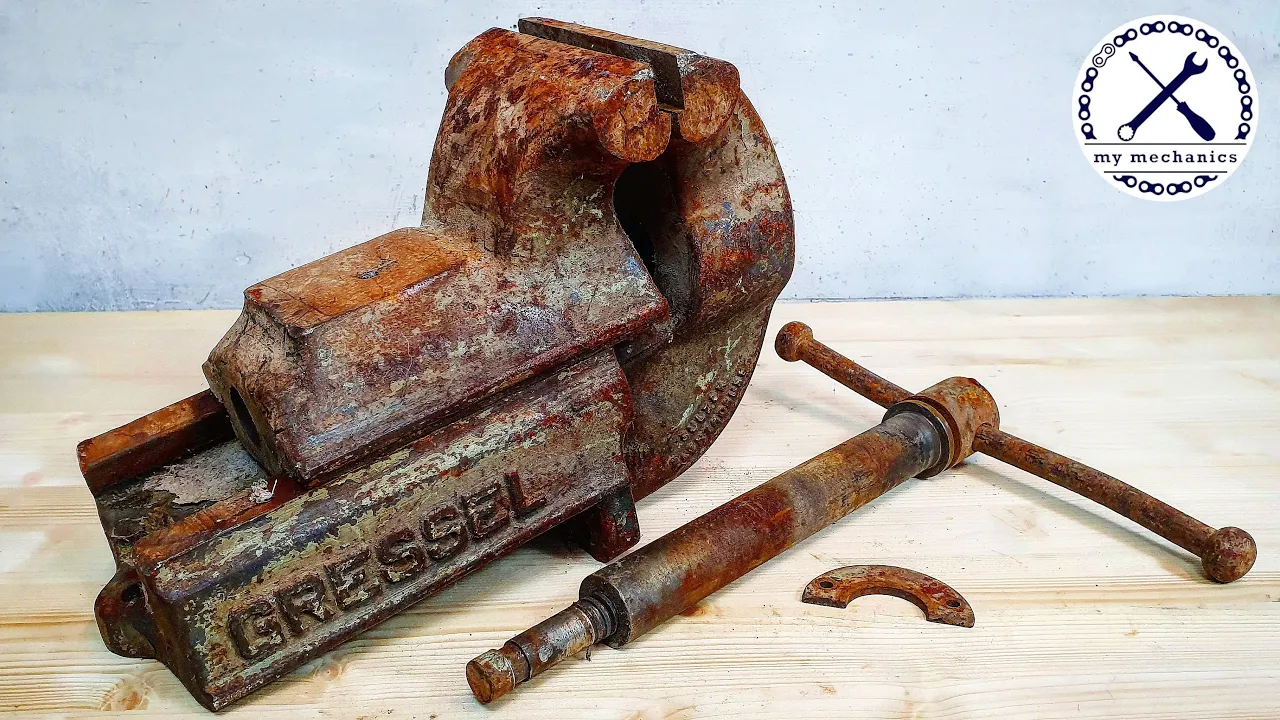

This one wasn't that rusty like the other one, but it was also completely deadlocked. The handle was beaten up and bent. The jaws, some screws and two pieces to hold the spindle were missing. The pin that secures the spindle from turning was broken. Because of all that the spindle fell out. This vise has two threads and two concentric bushings to keep the jaws in place. Talking to Gressel I found out that this method was only produced until 1960, so it's at least 60 years old now. It could be from 1943, as both parts had a „43“ stamped on them. As these original jaws are getting no longer produced, I decided to drill an extra hole between the threads to be able to use new jaws. Gressel was so nice to send me new flat jaws. All the bare surfaces were in really bad condition due to heavy use, that's why I decided to weld up material and clean all these surfaces on the milling machine. I replaced the handle with a new one, but I used the old rounded ends again which turned out great. I later secured the ends with Loctite when reassembling. I also made the two missing screws and the broken pin out of the old handle. I choose to paint the whole vise the same color as the movable jaws from the new Gressel vises are, cobalt blue (RAL5013). I think it turned out very well, the white lettering, the shiny bare spots and the black parts match very well.
I hope you like my work and the video.
Huge thank you to all of my Patreon and PayPal supporters and specially to:
Adel AlSaffar
afreeflyingsoul
David Barker
Gregory
Muzaffer Aksoy
Vince Valenti
Yale Baker
Alan Hanson
alex latzko
Amanda Taylor, Esq
Andreas Mimra
Andreswara Hermawan
Andrew Phillips
Anthony Adams
Arni Bjorgvinsson
audi4444player
Courtney Maleport
Cristian Zorilla
Dan Williams
Dre Gilley
Harper Kim
Hunter R.
JD Smith
Jessica Alexander
Joel Miller
Jonas Richartz
LVE
Marc Cercier
Martin Rønnow Klarlund
Mauricio Pacheco
Mellissa Marcus
Mellissa McConnell
Nick Cannon
Paul Ambry
Paul Mampilly
Risky Deem
Robert Everich
Shikidixi
Trevor Kam
TRG Restoration
웅록 윤
Timestamps:
Time and costs of this restoration:
I was working on this project for 2 weeks
$20 vise
$20 2k primer
$30 2k coat cobalt blue (RAL5013)
$30 steel for new parts
