Making a Custom Gear

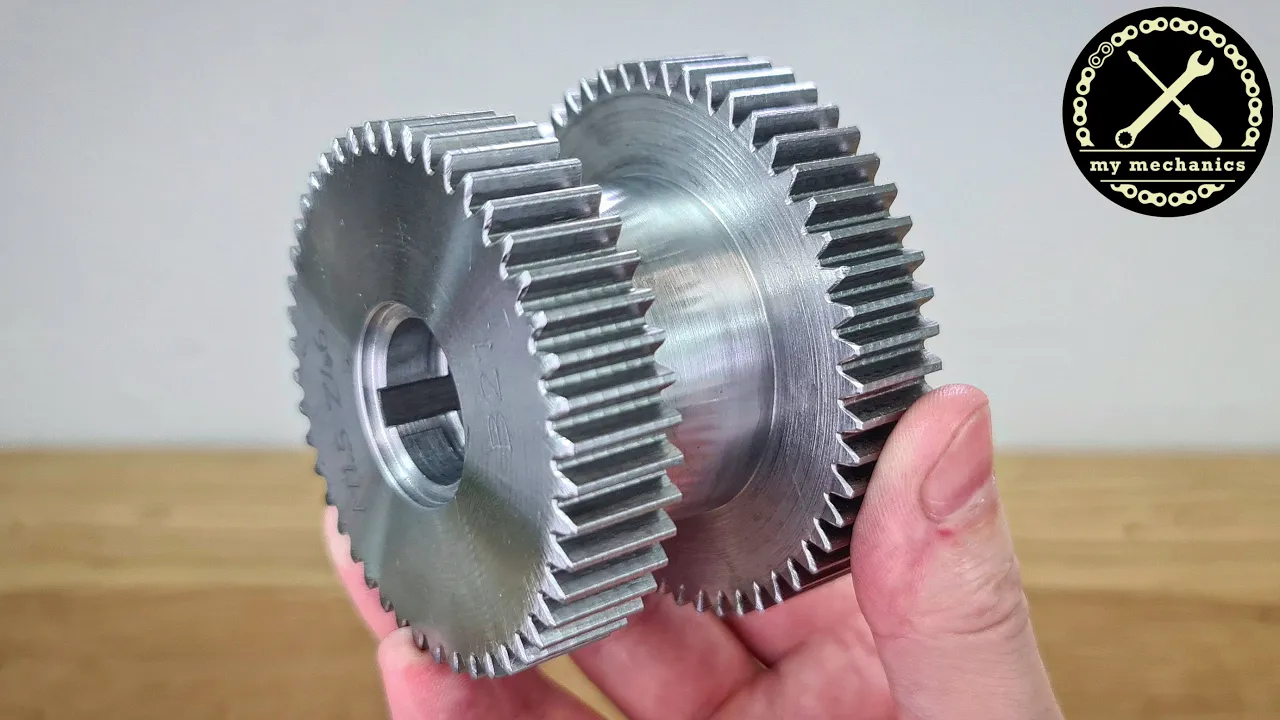

In this video I'm going to make a custom gear for my lathe. This special gear is needed to have additional feed rates to turn threads on the lathe, especially 26tpi. My lathe can cut a ton of different pitches, but not 26tpi. To cut a thread with 26tpi you'd need so called „special accessories“, which is just a special gear with 46 teeth and 52 teeth to replace the standard gear with 21 teeth and 28 teeth. So I decided to make my own. As I don't have any gear cutting milling tools I decided to make the special gear with two welded together normed stock gears. I was able to order them online for $25 each. After welding them together I made the bore to the proper size, turned three grooves and cut a keyway on the arbor press with a 5mm keyway broach. It all worked out as planed. I hope you like my work and the video. Huge thank you to all of my Patreon supporters and specially to: Tonya M Broerman Adel AlSaffar afreeflyingsoul Yale Baker Carsten Bauer Alex McGeorge Alistair Moor Amanda Moore Amar.k Anthony Eufemio Arthur Bendurion Blake T Brenna Redpath Chris walter David Barker David Lowell Edward Conway Glenn Soucy Haitham Al Zir Huard de la Marre Hunter Fancher isaac Jean Ceppi Josh Ledford Josh Wasserman Joshua Bentley Joshua Scher Lambda GPU Workstations Leo Matt Boothman Mellissa Marcus Monte Gibbs Nick Houston NoLoneSurvivor Pat Thrasher potokslow StevenVR Tyler Carruth Vickie Bligh Vince Valenti Will Black William Bennett Xavier Carbel Yuri Zapuchlak Никита Дядин Adam Holtzclaw Alex Bindon Alipasha Sadri Amanda Taylor, Esq Andreas Mimra Andrew Egerton Andrew Phillips Arni Bjorgvinsson Bonnie Williamson Brian Hoerl Chad Bryant Charles Fisher Crystal Cash Daniel Trejo Daniel Varga Danielle Roberts Dave Cannon Dave Hardware David Ebert Diriector_Doc Ethereals flowercrownbouncer Gene Gonzalez Geoffroy Grant Daniel Grok Senften Haley McFadden Hunter R. Jack Curry Jason Koi Jason Tarlov Jeremy Cole Joël Franusic justin f. Ken Rosso Kevin Styles Kurt Gazow Marc Cerisier Marc Staedelin Mary Casella Maxim Mellissa McConnell Michael Michael Beck Micheal Bier Michael Lamp Noah Schwarz Pasacal Schmikal Pelec Peter Cyprian Regis Vincent Rev. Gina Pond Rich Linton Robert Todd Sarah Langlais Scott Marshall Sergei Shvartsman Simon Steven Michalcewicz Steven Stowik Suiros Svenja Kuckla Tim Holt Trevor Kam Tucker Ifft 웅록 윤 My camera: Panasonic HC-VX11 If you have any questions about the process, machines i'm using or other stuff, just ask me in the comments. I read them all and i try to reply as soon as possible. Sorry for my bad english, it's not my language. I try my best to improve my technical english. Subscribe for more of my content. I'm uploading videos about mechanical stuff, as new creations and buildings and also restorations. Thank you for watching :-) „I make a new one“ T-Shirts: https://teespring.com/stores/my-mechanics My Main Channel: https://www.youtube.com/c/mymechanics My Second Channel: https://www.youtube.com/channel/UC4EQCwfH54ieNPswtXh5K0w My Patreon Page: https://www.patreon.com/mymechanics
