I MADE A STEEL CNC MILL FROM SCRATCH (desktop version)
Ivan Miranda
Jul 24, 2021 14:00
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Chapters
Install Raid for Free ✅ IOS/ANDROID/PC: https://clcr.me/ERtcce and get a special starter pack Available only for the next 30 days
Somehow I got carried away by the comments in the last video and decided to sharpen my welding skills trying to rebuild the mill out of steel.

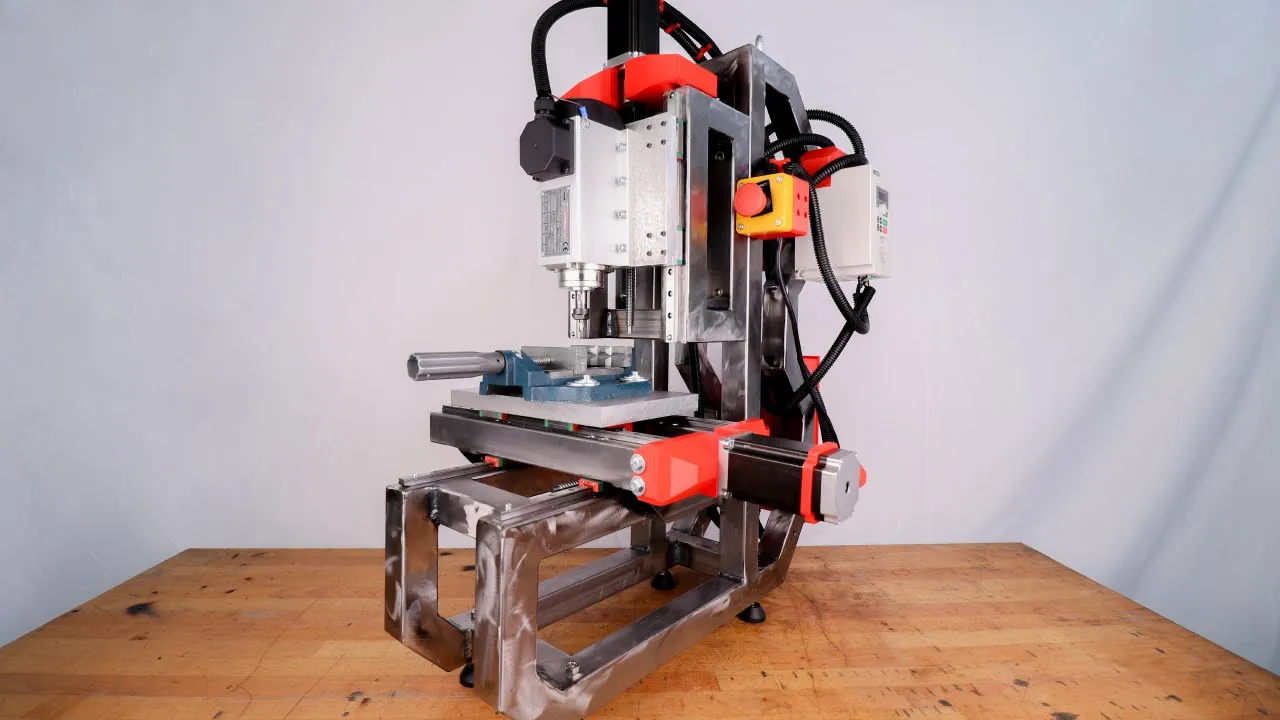

I remade the entire frame out of 40x40x2 steel box and TIG welded it using a technique called winging it. As a known side effect of this technique the frame is not square, straight, coplanar, or any of the required properties for the frame of a machine like this. I solved it by shimming almost everything on it with washers of different thicknesses and a lot of brute force. In the build of the aluminium one almost everything went perfect first try, in this build I had to wrestle with it a lot, way more than I'm capable to show in a single video. The machine is obviously more rigid than the aluminium one and after a lot of fiddling with it, it is surprisingly straight where it counts and seems to even be properly trammed.
As a bonus at the end of the video I decided to obliterate some aluminium and steel with the wrong dull bit and completely wrong feeds and speeds.
As always let me know what you think in the comments.
Thanks for watching!!
