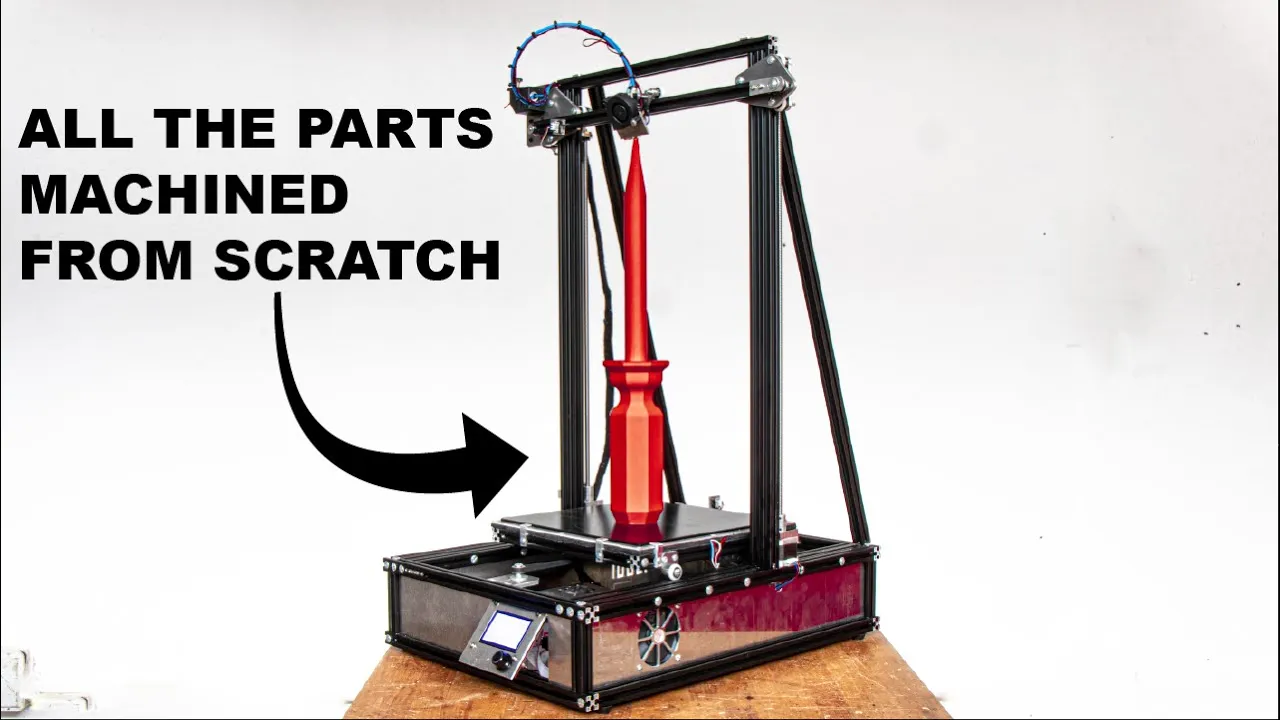

I MACHINED A 3D PRINTER FROM SCRATCH (NO 3D printed plastic parts)
Ivan Miranda
Sep 17, 2020 17:00
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Sponsored by World of Warships: Legends! Register to receive Tier II Premium cruiser Charleston, 7 days of Premium Account, and boosters when you use code AR3ZPU6TRV and click here → https://wowslegends.com/promo1/ Applicable to new users only. #WoWsLegends
As an exercise to hon my machining skills and to fill a gap in my 3D printer farm I decided to machine all the parts for a new 3D printer out of aluminium. It has been very rewarding and I learned a lot, I'm confident now that I can set up a job for any part I want.
The plans for the 3D printed CNC that I used to machine all the parts can be found here:
https://ivanmiranda.com/products/3d-printed-cnc
And the videos where I make it are here:
https://www.youtube.com/watch?v=qpjf5D3WngY
https://www.youtube.com/watch?v=_atw3e0nIrg
The Z axis motor brackets were the first ones I tried and it shows, very bad cuts but useful parts. I was using a thicker plate and different alloy and that gave me a few headaches.
I started the build with the intention of using an SKR 1.4 turbo electronics, and you can see that I even installed it on the printer but once I got to the point of modifying the firmware I saw that it was going to take another month alone to learn how to do it properly so I went and grabbed a ramps 1.4 that I had lying around as I can configure those in a breeze. As a result I had to remove one of the Z axis switches but it all worked well in the end so I'll keep the ramps in there.
I had to make a few changes along the way like the X axis belt tensioner but I couldn't show all of them or this video would have been 3 days long.
I hope you enjoy the video as much as I did enjoy making it!!
