Lego, Raspberry and Python Project - Reaction Wheel Inverted Pendulum
Brick Experiment Channel
Apr 16, 2022 14:08
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Chapters

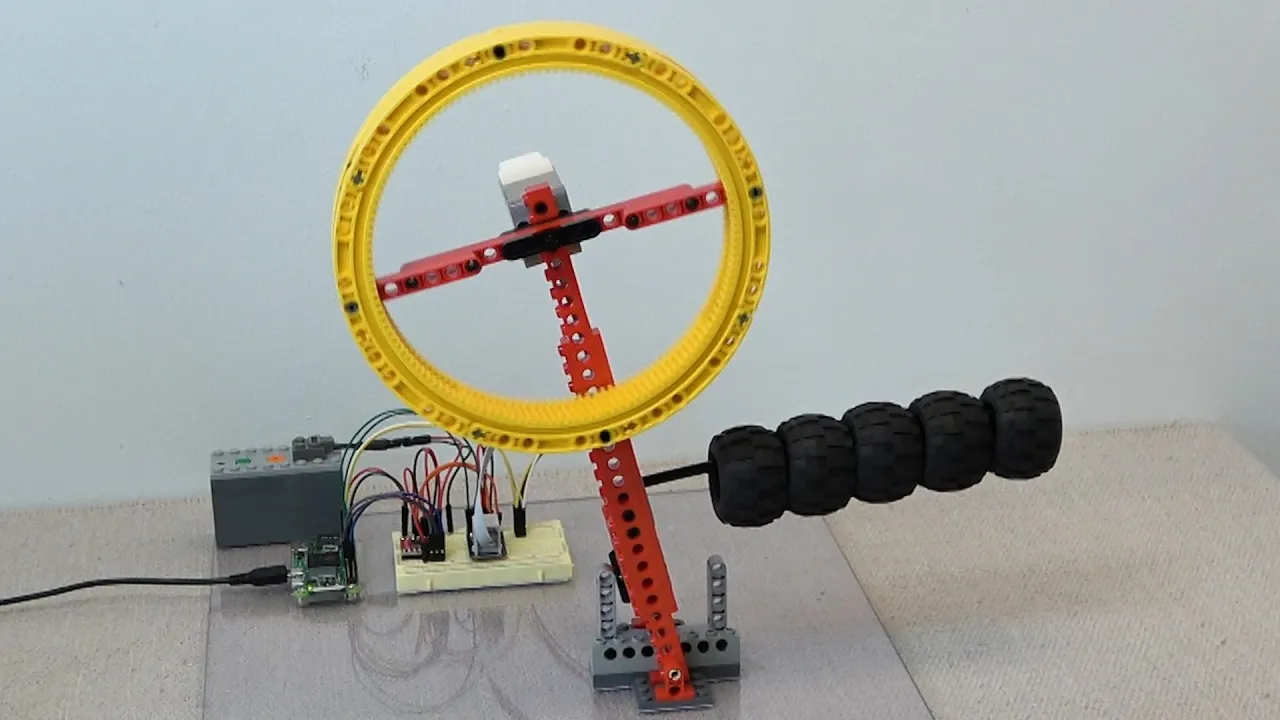

Single axis self-balancing reaction wheel inverted pendulum.
This thing is inherently unstable and a common challenge in control theory.
The mechanical structure is built using only Lego parts.
Motor is also Lego. Angle sensor and electronics are not Lego.
Enjoy!
PARTS:
Raspberry Pi Zero 2 W
OKYSTAR TB6612FNG motor driver
Elecrow SM9250MPU 9DOF IMU
Lego EV3 Medium Servo motor [45503]
Lego PF Rechargeable Battery Box [8878]
Lego Gear Rack 11 x 11 Curved [24121]
CODE:
https://mega.nz/folder/h6Y2EYwQ#t1s6ihP5UcFOJb5QGhX1Ww
or
https://www.dropbox.com/sh/pem1mbpp82pbgwz/AAAc5Uqdah6dsNdRhJ95bmCBa
