Building a Lego-powered Submarine 3.0 - balloon and compressor

Brick Experiment Channel Sep 11, 2021 14:28
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Don't Miss
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Mark watched
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Hide
Open in popup Open on YouTube
Share video

Share video

Copy the GridVids link or iframe code.

Video link
Iframe code
Iframe content

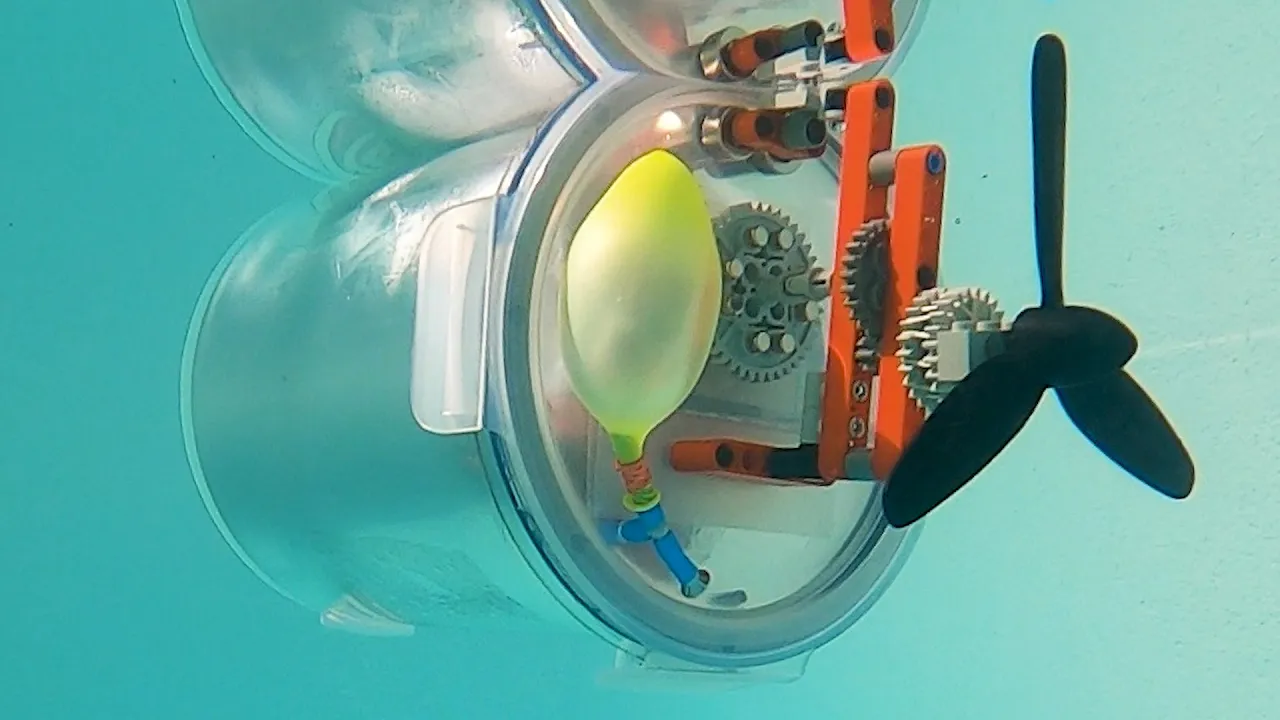

Depth control is done with an air-filled balloon and a Lego-compressor. Steering is done by turning the propeller direction with the help of linear magnetic coupling. Otherwise it's more of the same as before. Swimming pool and lake tests at the end. Enjoy! Specs: Displacement: 2.35 kg (5.2 lb) Test depth: 6 m (20 ft) Hull: glass jar (IKEA 365+ 1.7l), plastic lid Balloon: latex water balloon for kids Motors: 2x Lego PF L-motor (88003-1), 1x Lego PF Servo motor (88004-1) Compressor parts: Lego pneumetic pump small V2 (bb0875), Lego pneumatic switch (bb0874), Lego Gear 24 Tooth Clutch (60c01), Lego Hose Pneumatic 4mm (21825) Magnetic couplings: K&J Magnetics D34-N52 neodymium magnet, TapeCase 423-5 UHMW Tape Propeller: Lego Propeller 3 Blade with 24t Gear (2740c01) Radio control: 27 MHz controller dissembled from a toy submarine (Zantec Mini RC U Boot), L298 H-bridge to drive motors Power supply: 9V Lego battery box for the motors, 3.7V Li-Po for the radio Pressure sensors: Lego Manometer (64065), Jolly Logic Altimeter One Note: The depth control I use here is called RCABS or Recirculated compressed air ballast system. Previous subs: 1.0 piston ballast for depth control https://www.youtube.com/watch?v=tGEZApd9MMk 2.0 propellers for depth control https://www.youtube.com/watch?v=MdfUSNzc0Xk
