Building a Lego-powered Submarine 2.0 - magnetic couplings

Brick Experiment Channel Jun 30, 2020 14:12
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Don't Miss
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Mark watched
Create an account to hide videos, mark them watched, or save them to Don't Miss.
Hide
Open in popup Open on YouTube
Share video

Share video

Copy the GridVids link or iframe code.

Video link
Iframe code
Iframe content

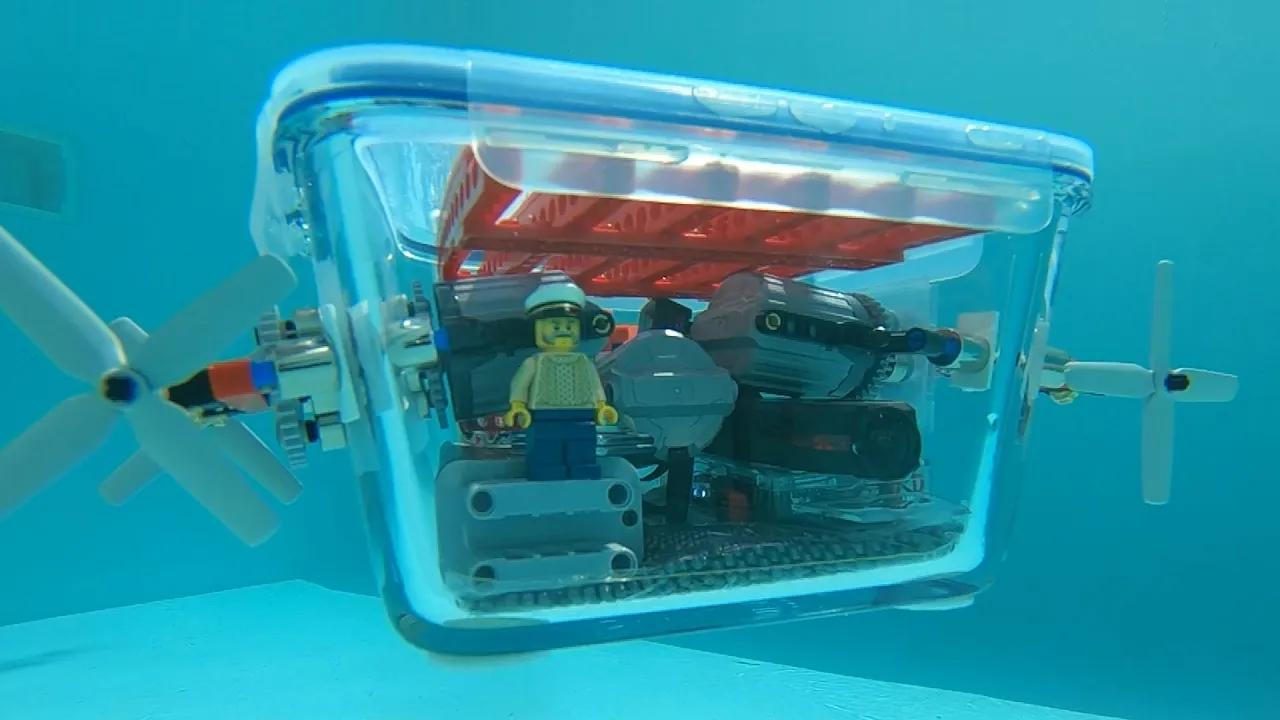

This RC sub has magnetic couplings to transmit torque through the walls. No need to drill holes = no leaks. At the end I test it in a swimming pool. Enjoy! Differences to the first sub https://www.youtube.com/watch?v=tGEZApd9MMk -rectangular hull (need flat walls for magnetic couplings) -snap-and-lock lid (more reliable, less leakage) -bigger motors, more motors, more propellers -depth control using propellers (IMO more accurate compared to a syringe ballast tank) -lead pellets for ballast (easier to adjust, both shape and weight, compared to steel plates) -captain (thanks everyone for pointing out this obvious missing part :)) The submarine specs: Displacement: 2.7 kg (6.0 lb) Test depth: 1.5 m (4.9 ft) Hull: glass food container (IKEA 365+ 1.8l), plastic lid Motors: 3x Lego XL-motor (8882-1) Magnetic couplings: K&J Magnetics R844-N52 neodymium magnet, TapeCase 423-5 UHMW Tape Propellers: Lego propeller blade (2952), Lego liftarms Radio control: 27 MHz controller dissembled from a toy submarine (Zantec Mini RC U Boot), L298 H-bridge to drive motors Power supply: 9V Lego battery box for the motors, 3.7V Li-Po for the RC Onboard camera: Faironly Firefly Q6 Pressure sensor: Jolly Logic Altimeter One Link to the magnets used in the couplings: https://www.kjmagnetics.com/proddetail.asp?prod=R844-N52 Music: Tommy Baynen - Laminar Flow [Colorize] https://colorize.ffm.to/encolor222 https://www.youtube.com/watch?v=UPdR8lh4a1o https://soundcloud.com/tommybaynen
Science & Technology
#lego technic #radio control #rc submarine #neodymium #magnets #swimming pool #max torque
